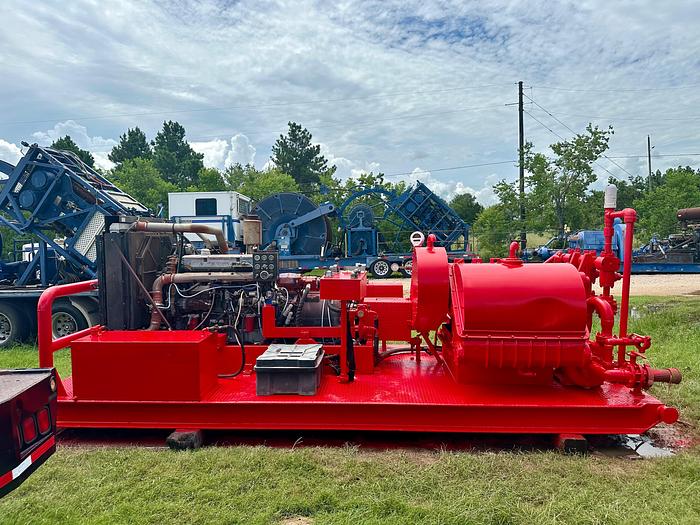

2011 GARDNER DENVER PAH 5K TRIPLEX WELL SERVICE PUMP SKID

2011 GARDNER DENVER PAH 5K TRIPLEX WELL SERVICE PUMP SKID

-(EXW WALLER,TX)

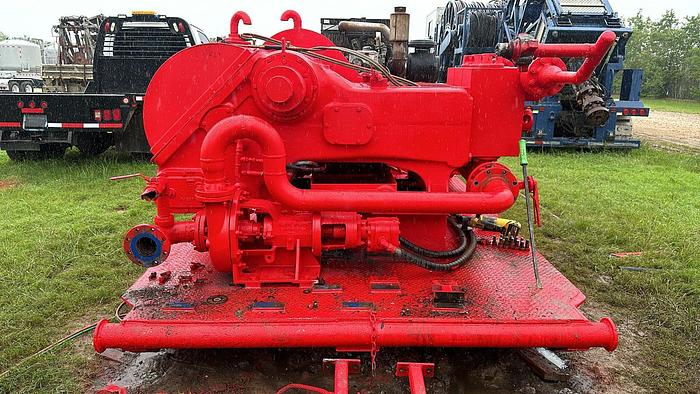

-GARDNER DENVER PAH TRIPLEX PUMP, 5” PISTONS AND LINERS

-DETROIT DIESEL SERIES 60, 12.7L, SERIAL 06RE130583, (REMANUFACTURED BY STEWART & STEVENSON 11/2011)

-ALLISON 5860 6 SPEED TRANSMISSION

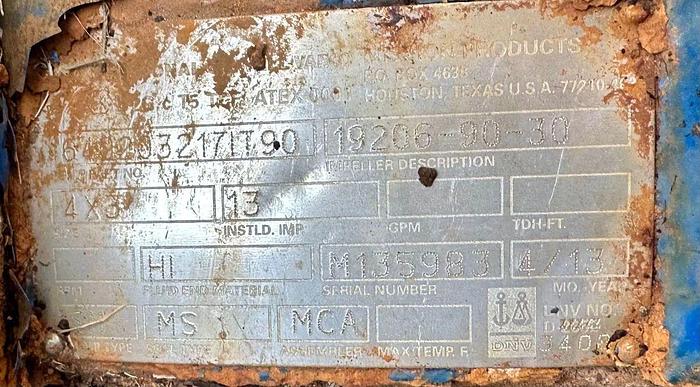

-NOV MISSION PEDESTAL CENTRIFUGAL PUMP 4X3X13”, HYDRAULIC DRIVEN

-DISCHARGE MANIFOLD 6,000PSI MAWP, 7 VALVE REVERSE MANIFOLD CONFIGURATION

-OTECO STYLE MUD-GAUGE 6,000PSI MAWP

-OTECO STYLE SHEAR PIN RELIEF, PRESSURE RELIEF VALVE 6,000PSI MAWP

-OPERATORS CONSOLE WITH PNEUMATIC CONTROLS, TRANSMISSION GEAR SETTING LIGHT INDICATORS

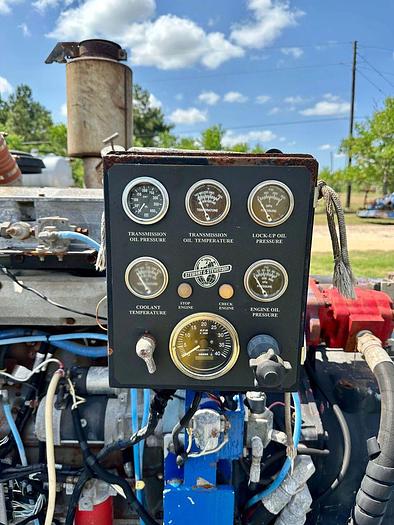

-STEWART & STEVENSON ENGINE CONTROL PANEL WITH ENGINE GAUGES

-24V ENGINE STARTER AND ELECTRICAL SYSTEM

*UNIT IS DELIVERED IN RUNNING CONDITION, SERVICED WITH NEW FLUIDS AND FILTERS, HOSES REPLACED AS NEEDED*
