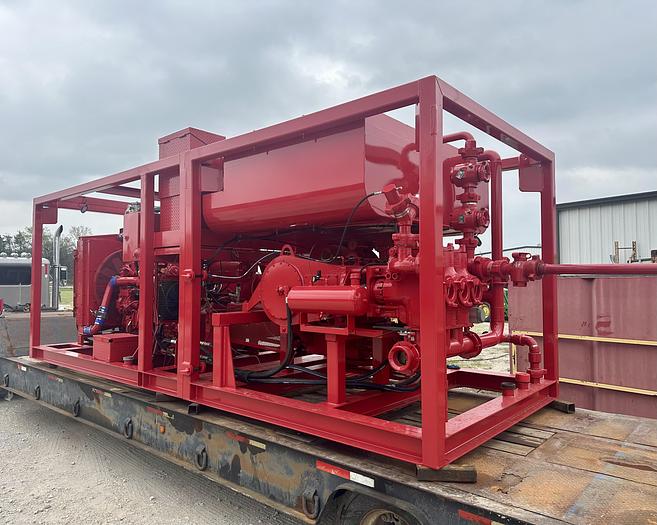

2025 Offshore Split Skid HT-400 Triplex Pump Skid

(2025 Build) HT-400 Offshore 2-Piece Split Skid Pump Package

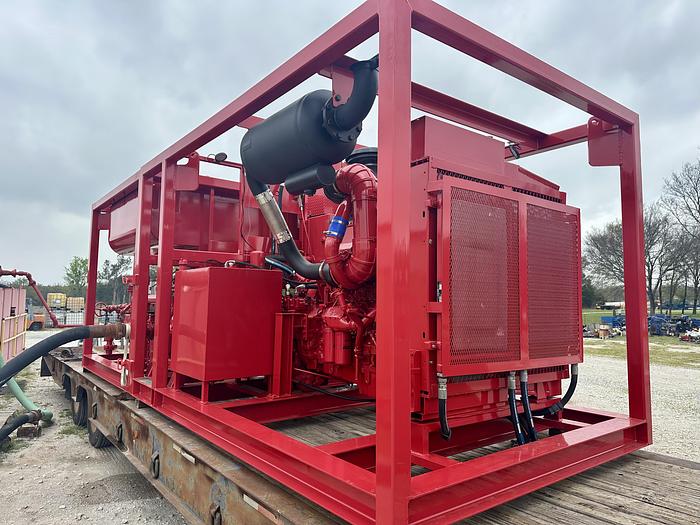

>Detroit Diesel Series 60, 14.0, 600HP Diesel Engine

(532 Hours)

>Allison CLT-6061 Transmission (Cable Shift)

>HT-400 Triplex, 4.5” Plungers 11,200 PSI MAWP (0 Hour Fluid End/ Serviced Power End) Triplex Pump

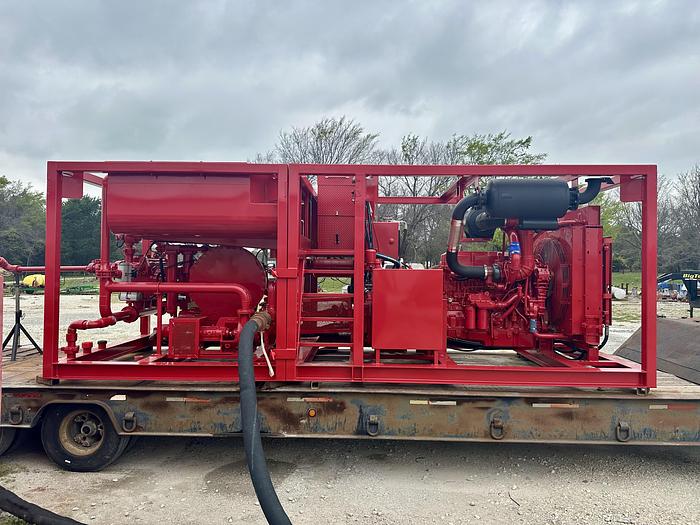

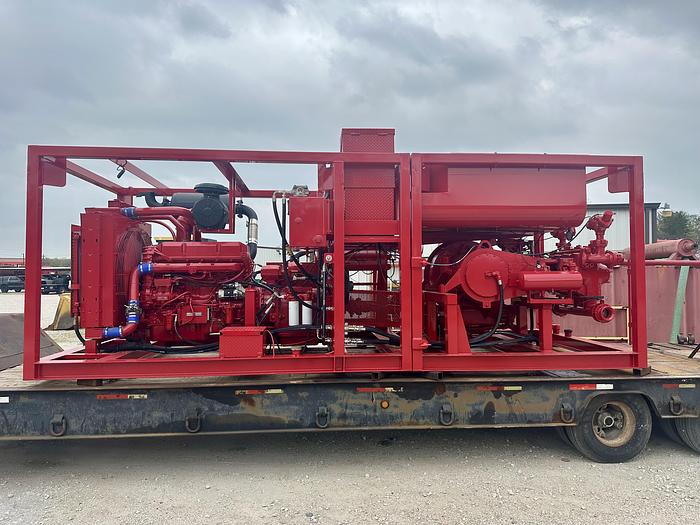

>Skidded package, with 2-piece split skid construction for ease of loading on offshore platforms

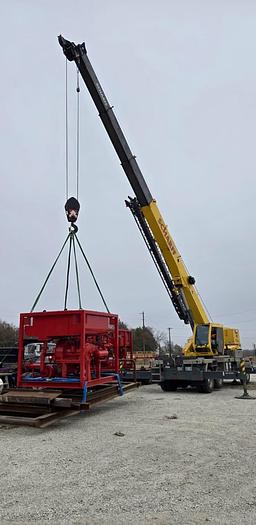

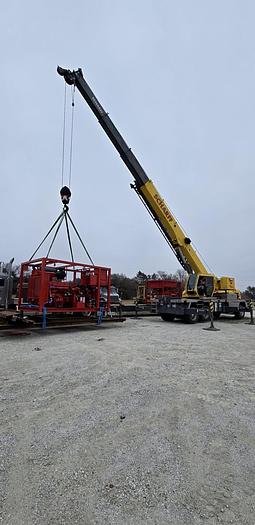

>Includes Square tubing cage with lifting eyes, load tested to 1.5x the total skid weight

>Air supply tank with packing lube tank and lube line injectors

>Hydraulics package with PTO, Hyd Pumps and Hydraulic Cooler

>15 BBL Displacement tank, with mixing and boosting manifold, and Manual Butterfly Valves

>MCM O’Drill 3x4x11” C Pump, 178 Series with Hydraulic motor coupling, Flow Control Valve for C Pump Speed

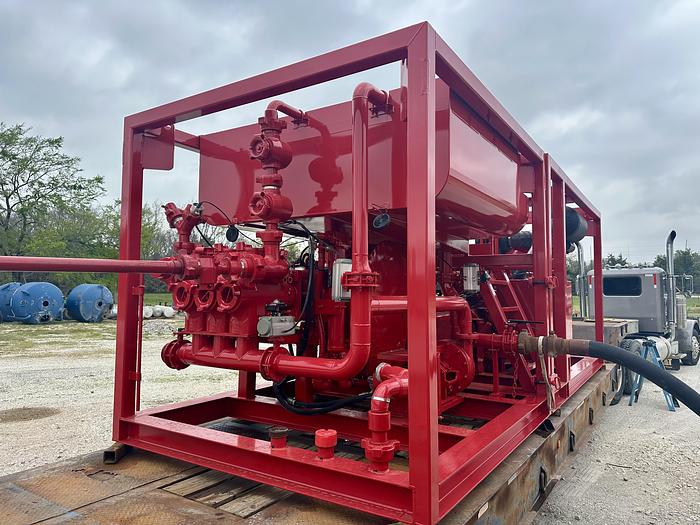

>Discharge Manifold Consisting of 2x1” and 2x2” plug valves, and 2” integral 1502 straight joints

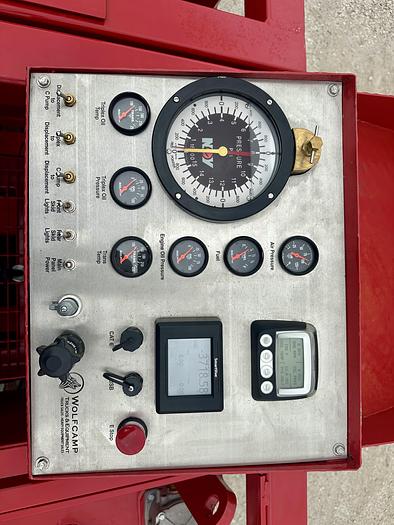

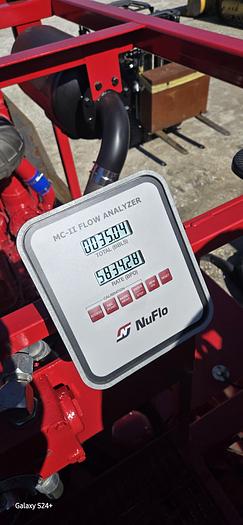

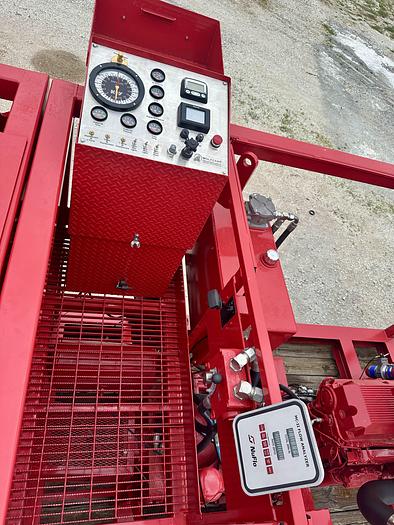

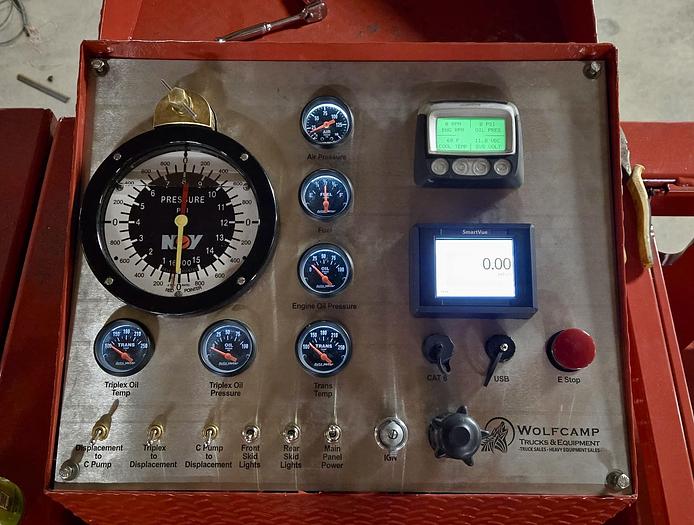

>Operator controls consisting of engines controls and parameter gauges, transmission control and lock up signal, Pressure gauge and MC-II Nuflo totalizer display, Dycor Smartvue DAQ Digital display, Emergency Kill (Flapper Valve), and other unit parameters/controls

*HT-400 is a registered trademark of Halliburton Corporation. Wolfcamp Trucks & Equipment is not affiliated with, endorsed by, or associated with Halliburton Corporation in any way.*
